Southern Region
Motorman’s Training Notes
Tom Smith

c.1957



A train pulling into a station

Description automatically generated with medium confidence

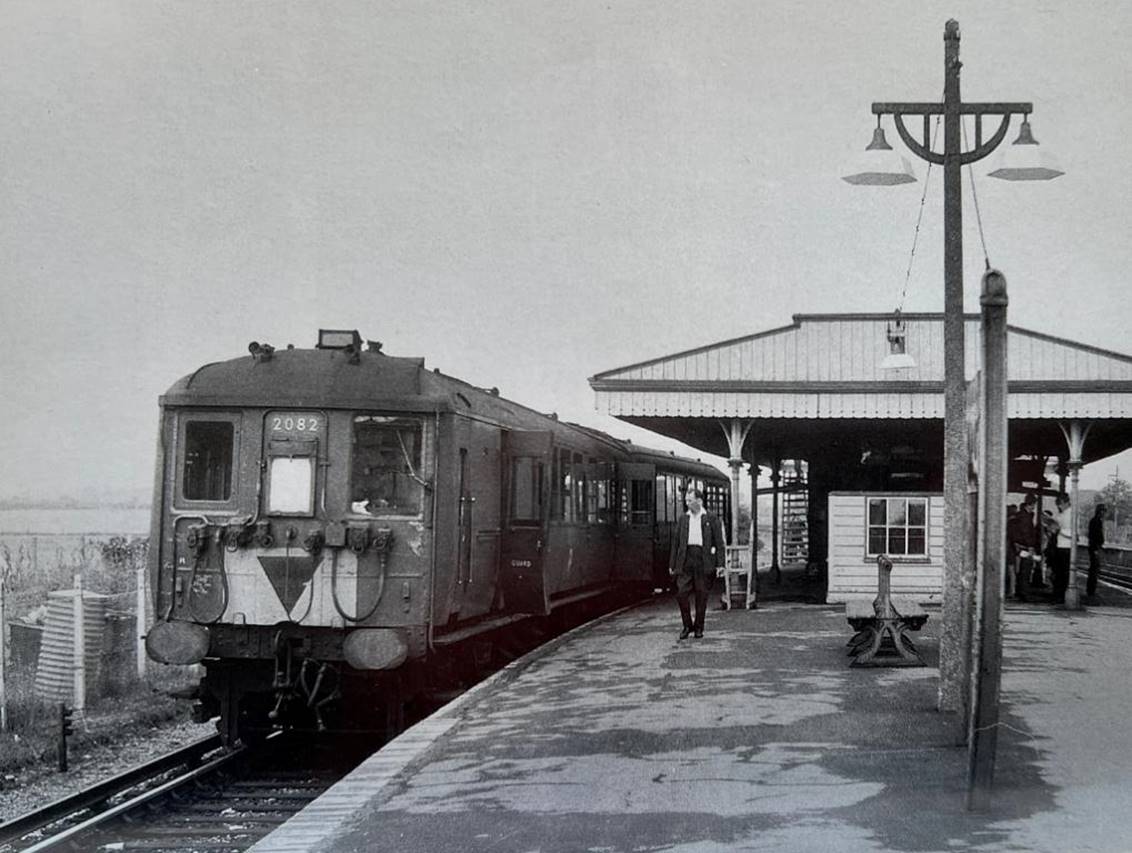

Motorman Tom Smith at Ford walking to 2 BIL unit no.2082.

Terry Gough©   (Courtesy of Past & Present Publishing Ltd /Colin Smith)



Born 1922 and when he was old enough, Thomas George ‘Tom’ Smith joined the Southern Railway as an engine cleaner at Eastbourne Steam Depot (later MPD) somewhere between 1937 and 1939. During WW2 he transferred to Brighton Steam Depot as a fireman and it is believed he was passed-out for driving steam around 1949.



A train on the railway tracks

Description automatically generated with medium confidence

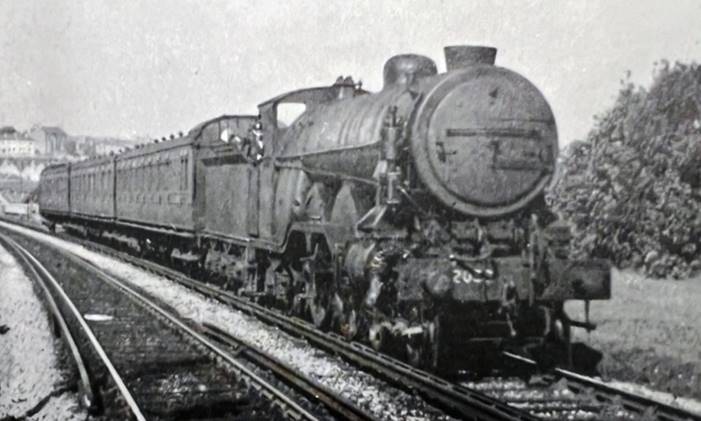

Fireman Tom Smith is leaning out of the cab of Brighton Atlantic no.2039 ‘Hartland Point’ as it comes off Brighton’s London Road Viaduct with a birdcage set in November 1947.

H.M Madgwick©   (Courtesy of Colin Smith)



Looking for a permanent motorman’s position, Tom eventually went to West Worthing EMUT in 1957. Within a short time he secured a position at Lovers Walk (Brighton) where he remained until around 1982 until giving up driving due to a health issue. His railway career continued in a clerical post at Barnham Station (whilst still retaining drivers’ pay). Tom sadly passed away in May 1983.

Copies of Tom Smith’s railway career, photographs and motorman’s notes from c.1957 are kindly provided by his son, Colin Smith.



Diagram

Description automatically generated

1.    Shoe Gear





Diagram, timeline

Description automatically generated

2.    660v Flow





A picture containing timeline

Description automatically generated

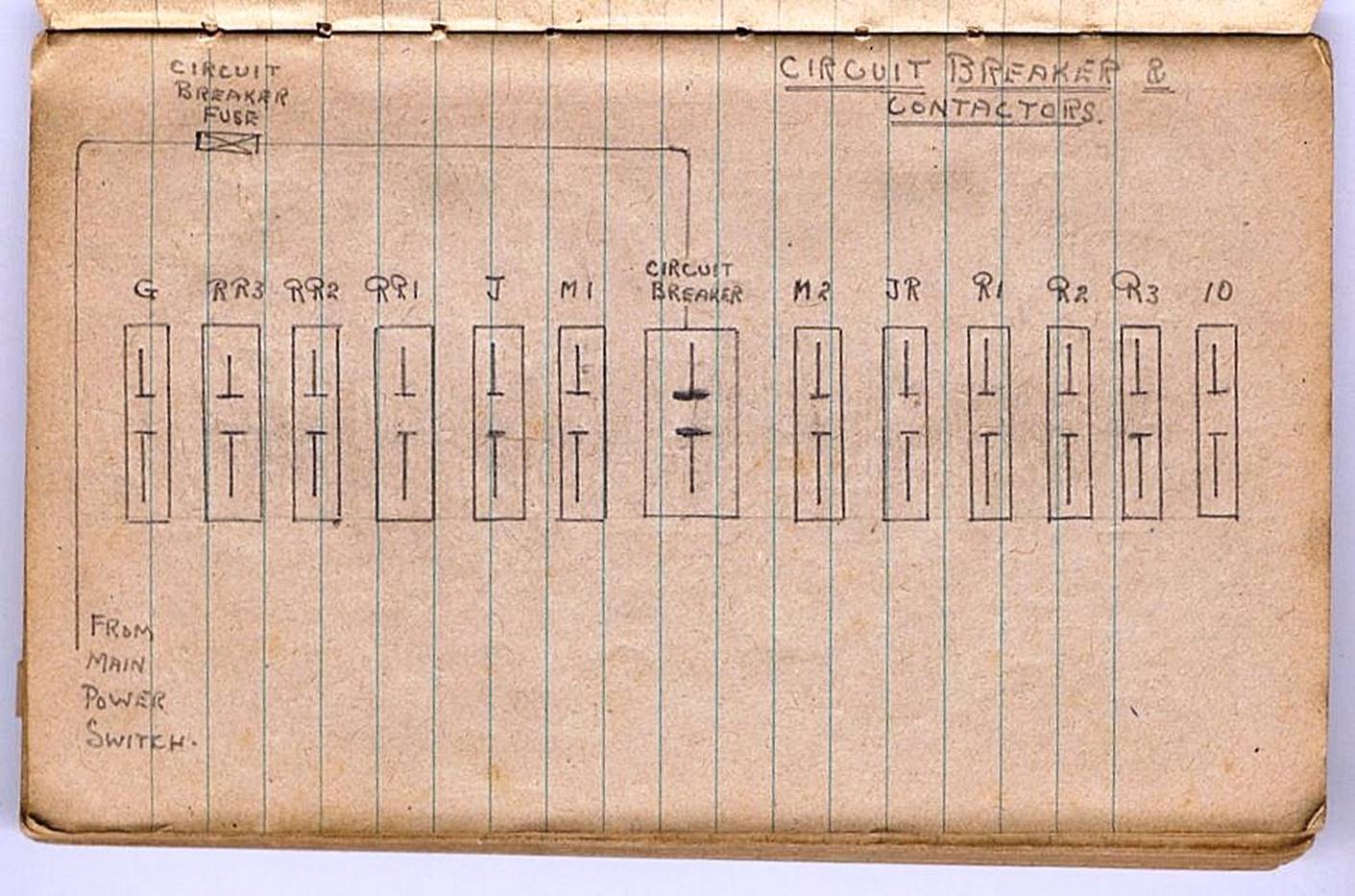

3.    Circuit Breakers & Contactors





Timeline

Description automatically generated

4. Jumpers





Diagram, schematic, timeline

Description automatically generated

5. Heating + Lighting Panel





Diagram, schematic

Description automatically generated

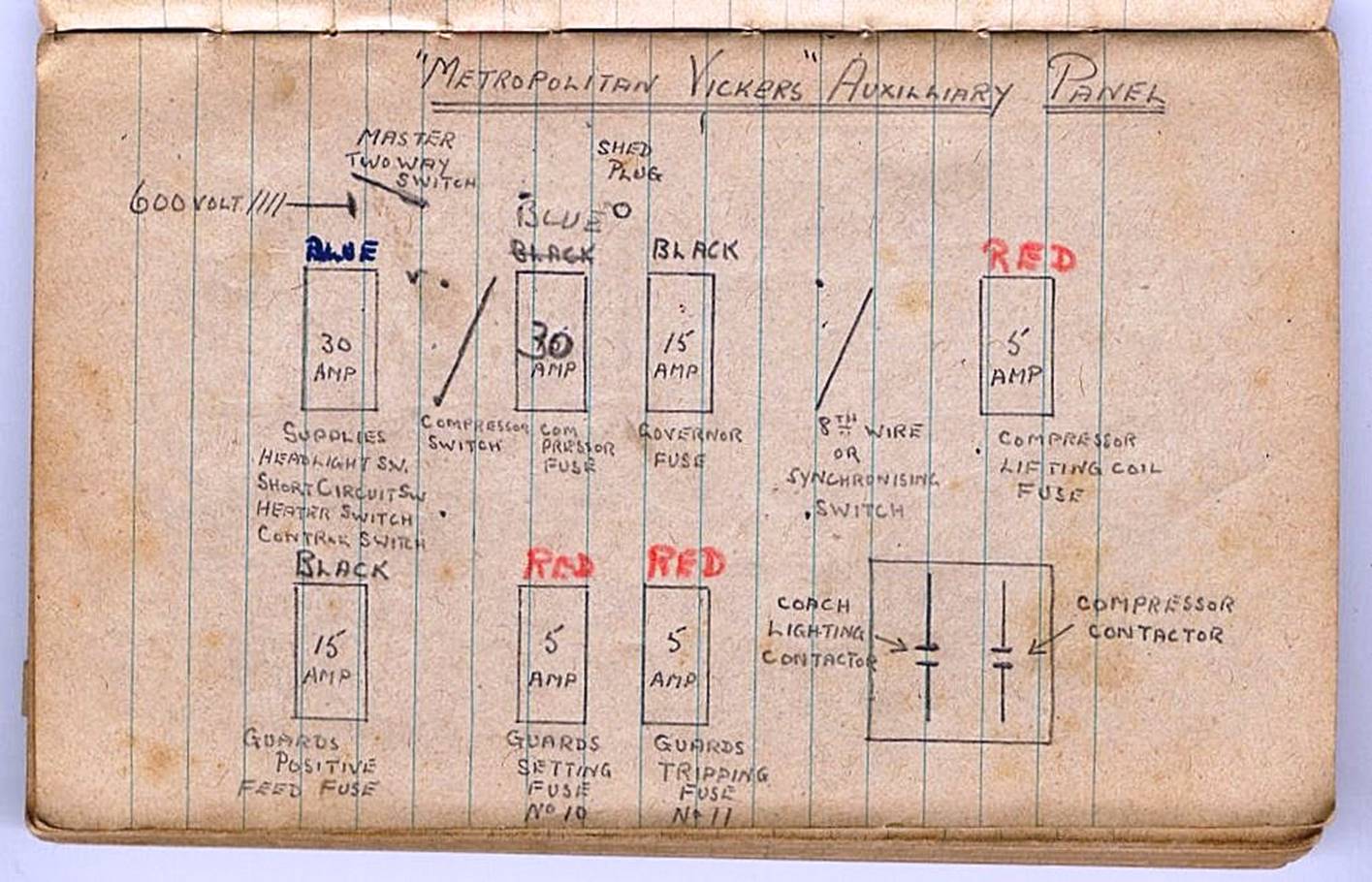

6. Metro Vic Aux Panel





Diagram, timeline

Description automatically generated

7. English Elec Aux Panel





Diagram, schematic

Description automatically generated

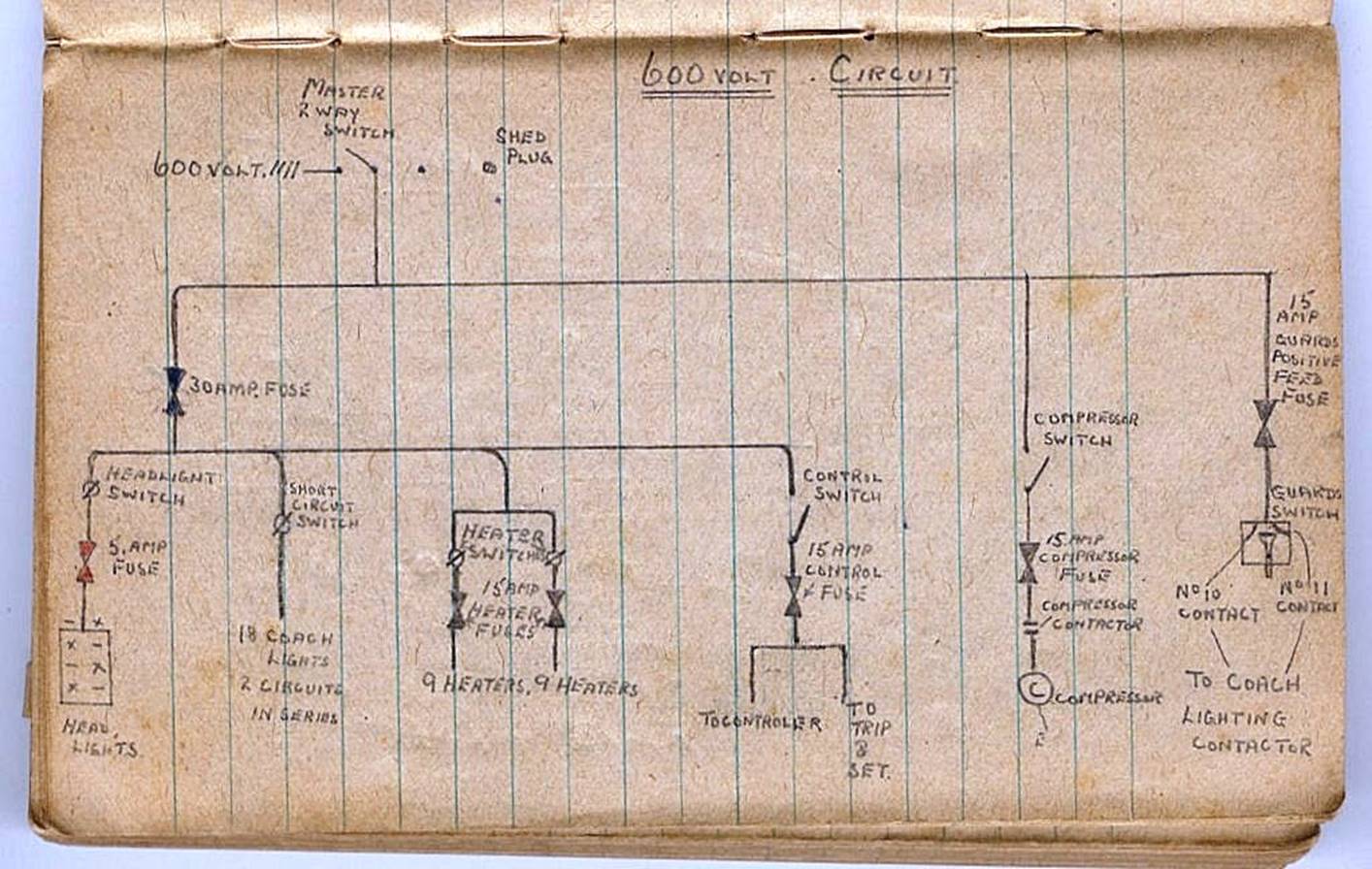

8. 600v Circuit





Schematic

Description automatically generated

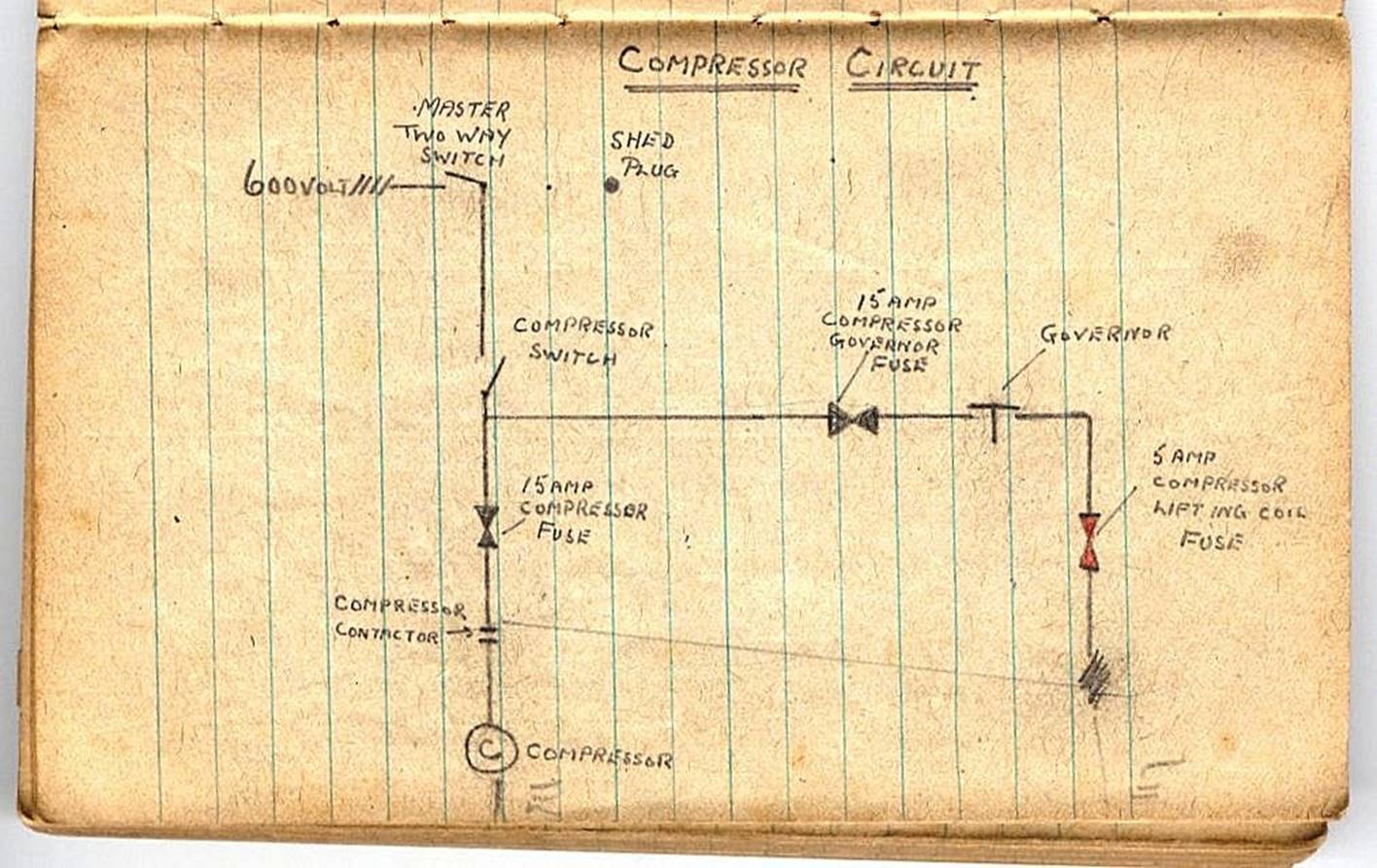

9. Compressor Circuit





Diagram, schematic

Description automatically generated

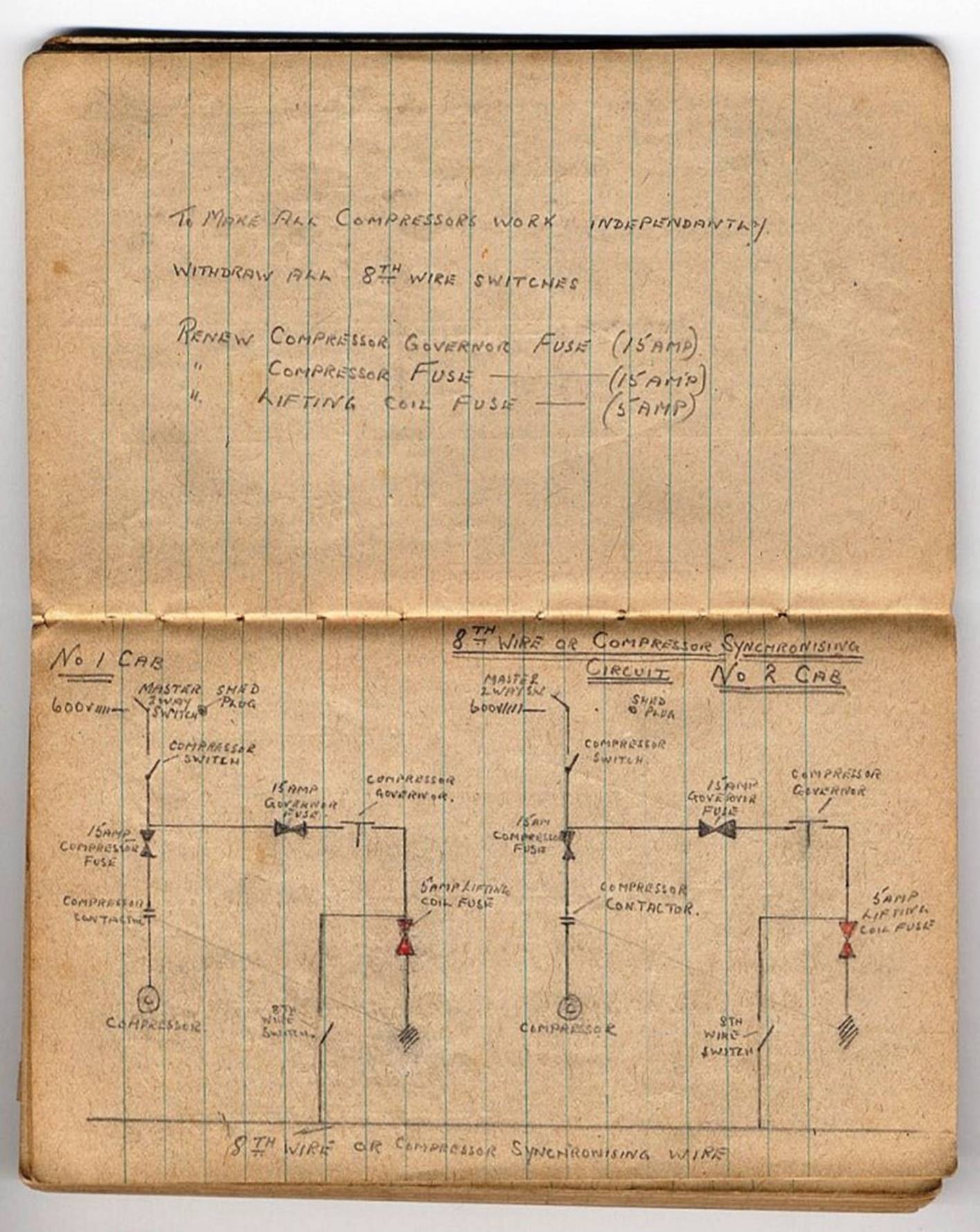

10. 8th Wire - Sych Circuit





11. Shunt Notch





Diagram, schematic

Description automatically generated

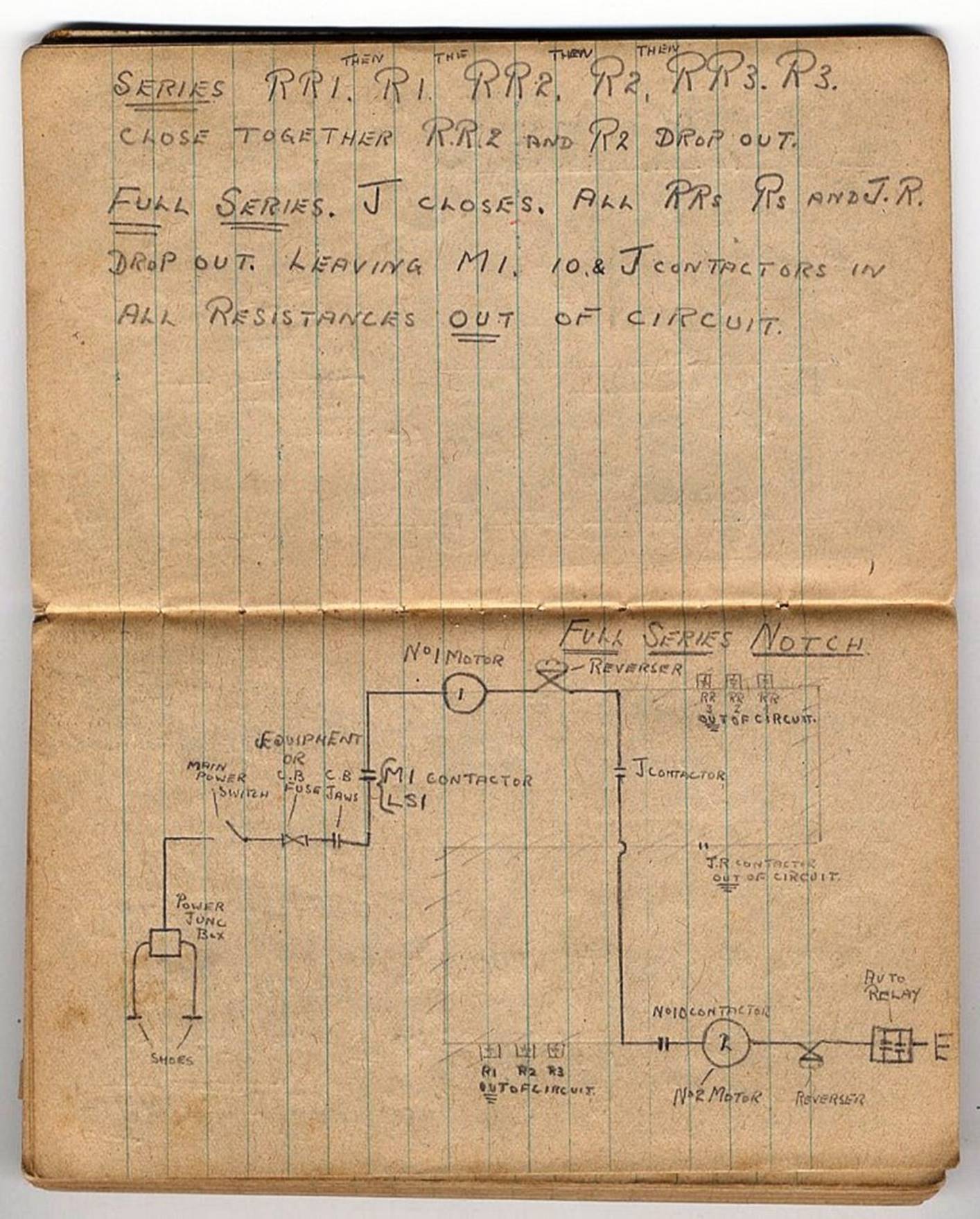

12. Series Notch





Diagram, schematic

Description automatically generated

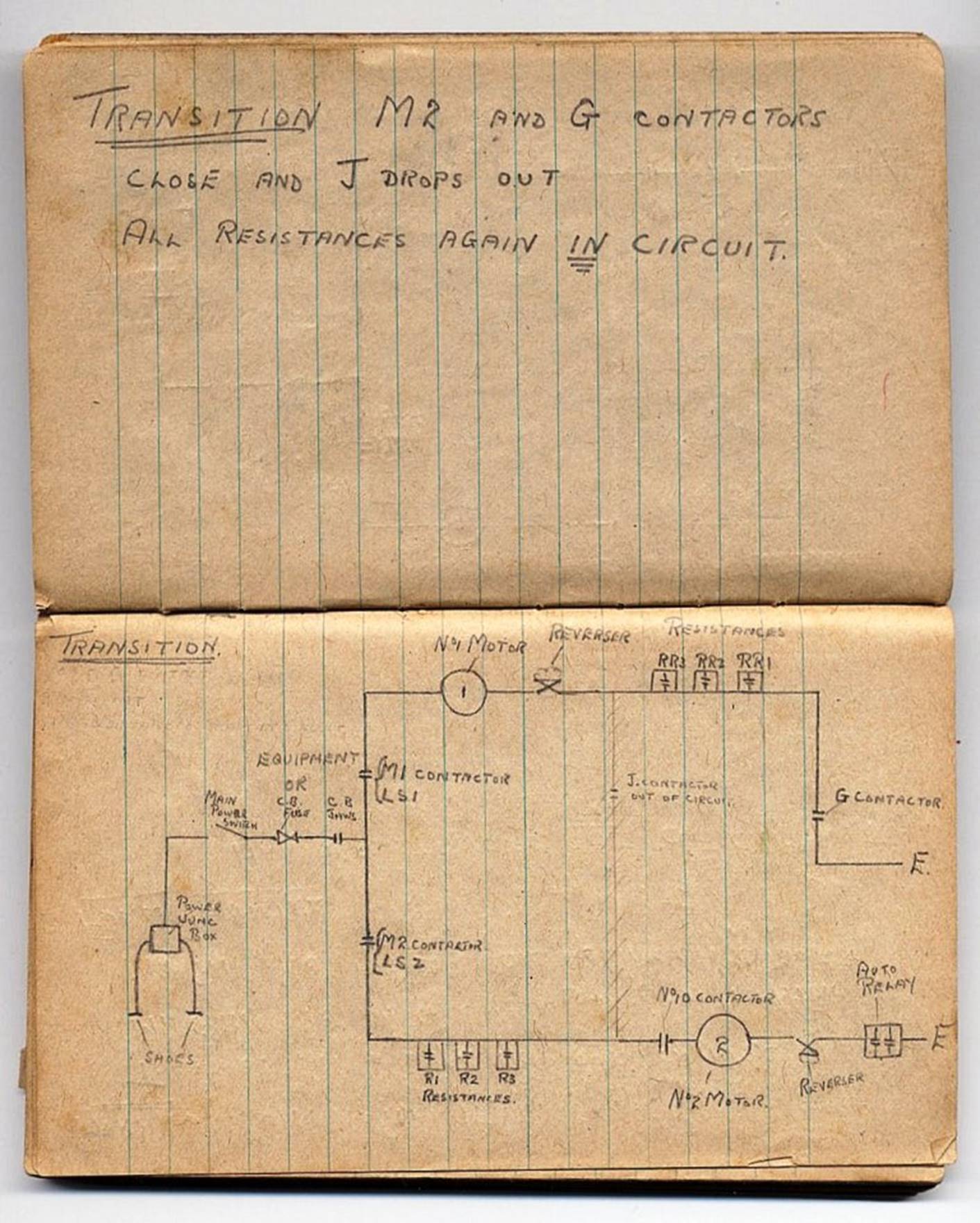

13. Transition Notch





14. Parallel Notch





Diagram

Description automatically generated

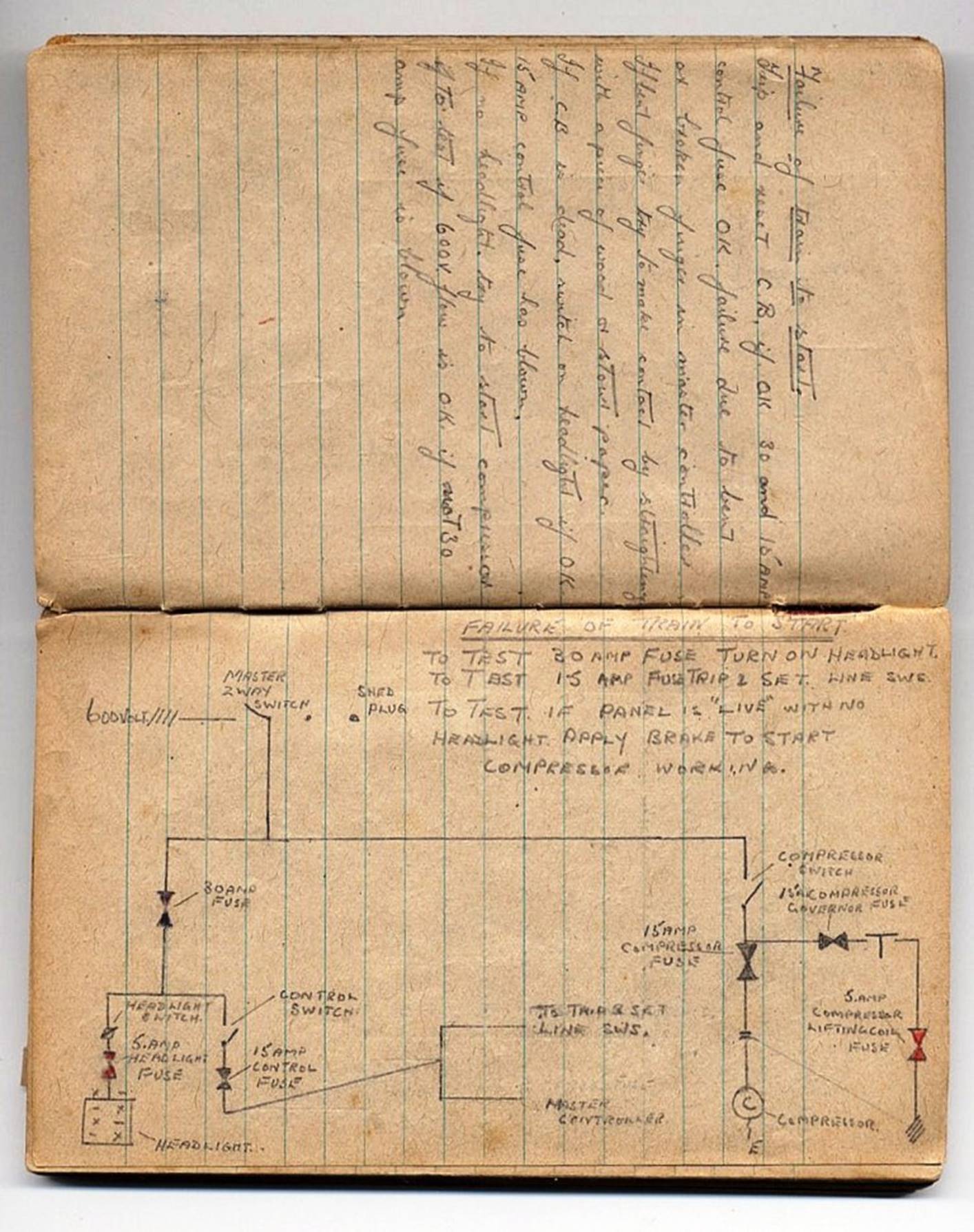

15. Failure to Start

.



Text, letter

Description automatically generated

16. Fail to Start – text





Text, letter

Description automatically generated

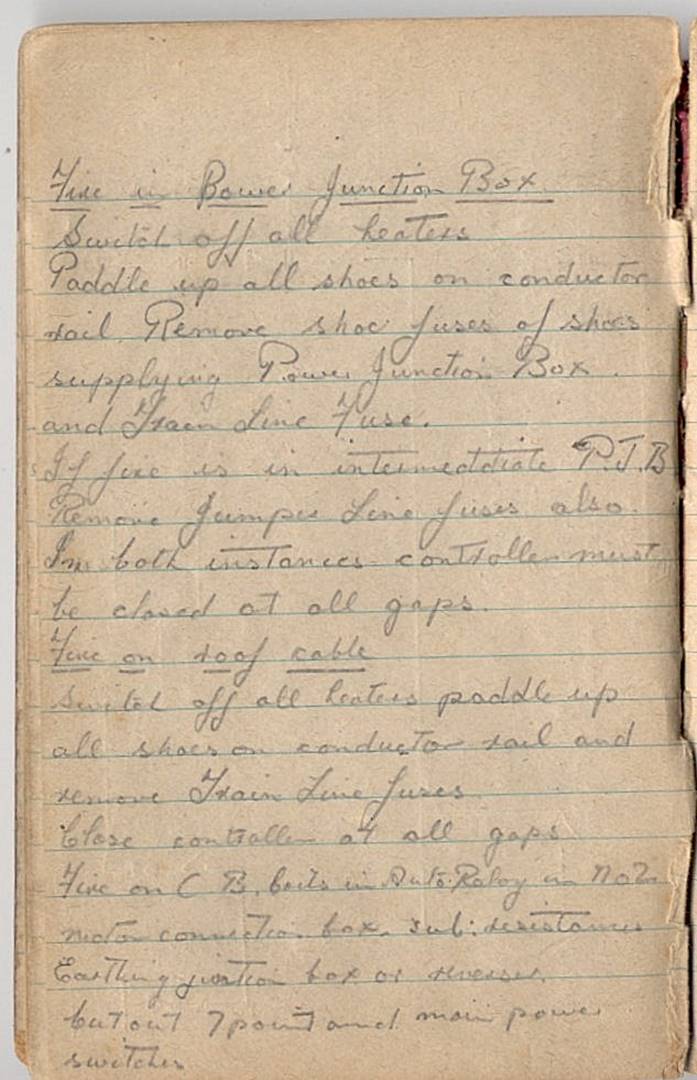

17. Fire in PJB – text





Diagram, schematic

Description automatically generated

18. Fire in PJB – diagram





Text, letter

Description automatically generated

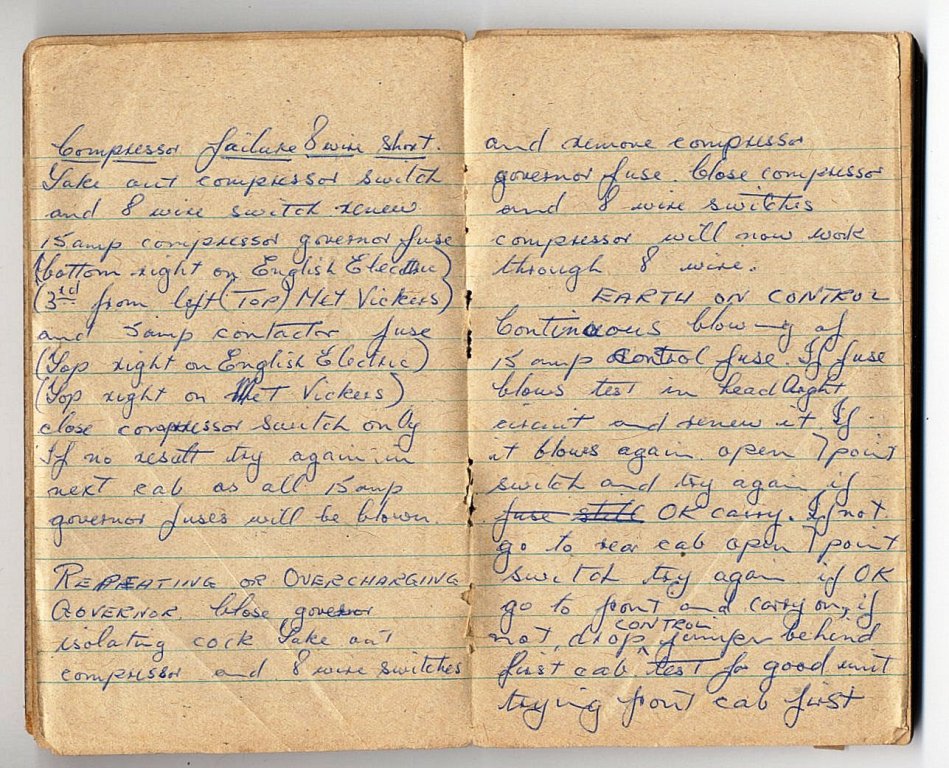

19. Compressor - 8th Wire Short





Text, letter

Description automatically generated

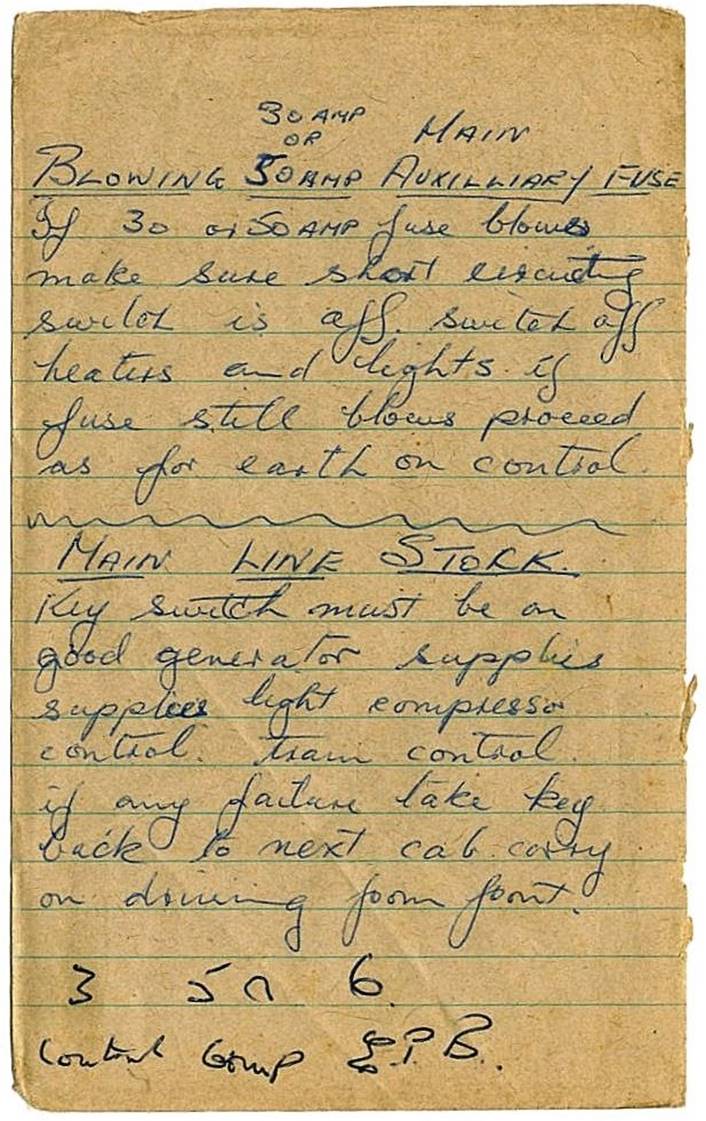

20. Blowing of 30A or 50A Aux Fuses

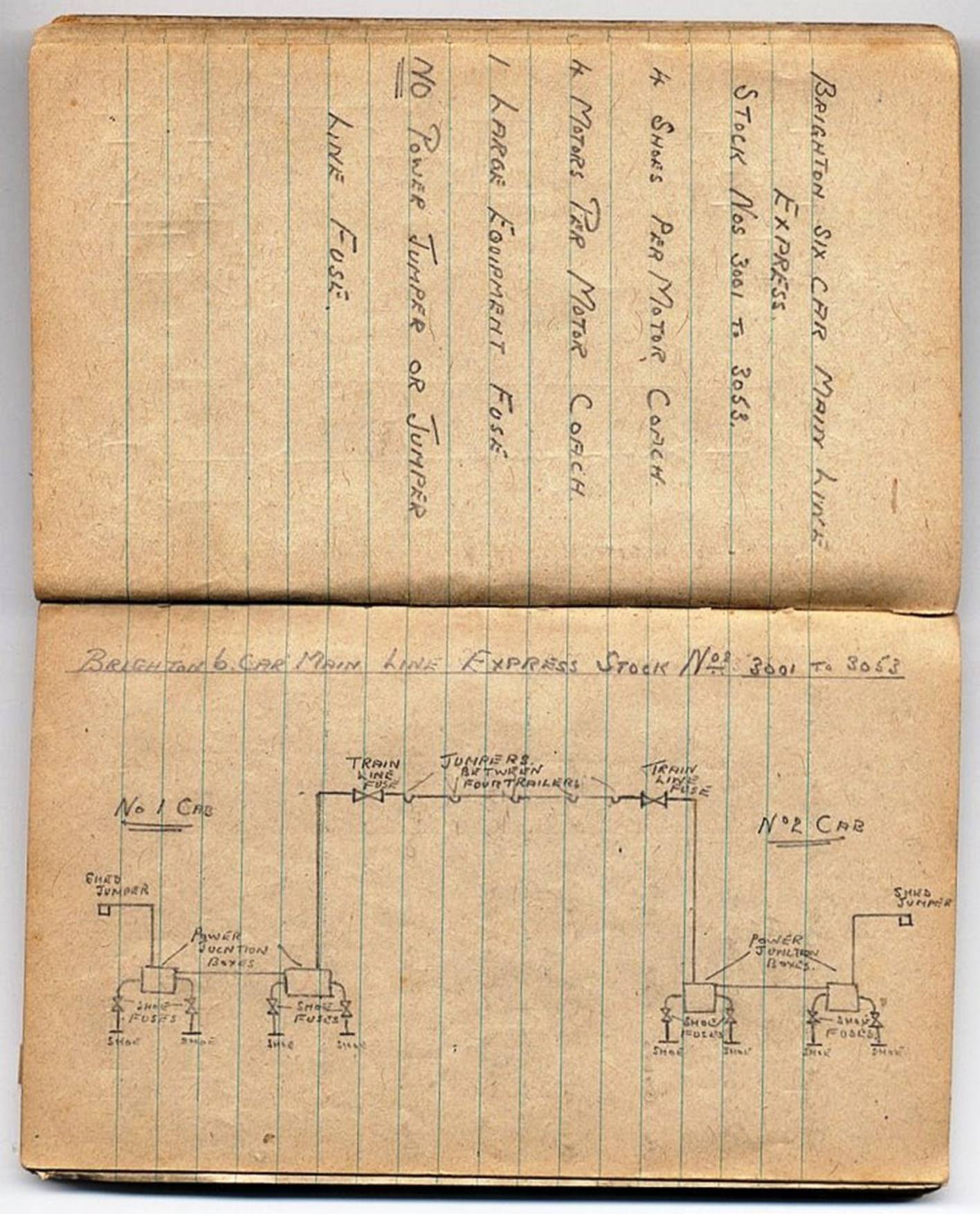

21. 6 Car Express Stock





Diagram, schematic

Description automatically generated

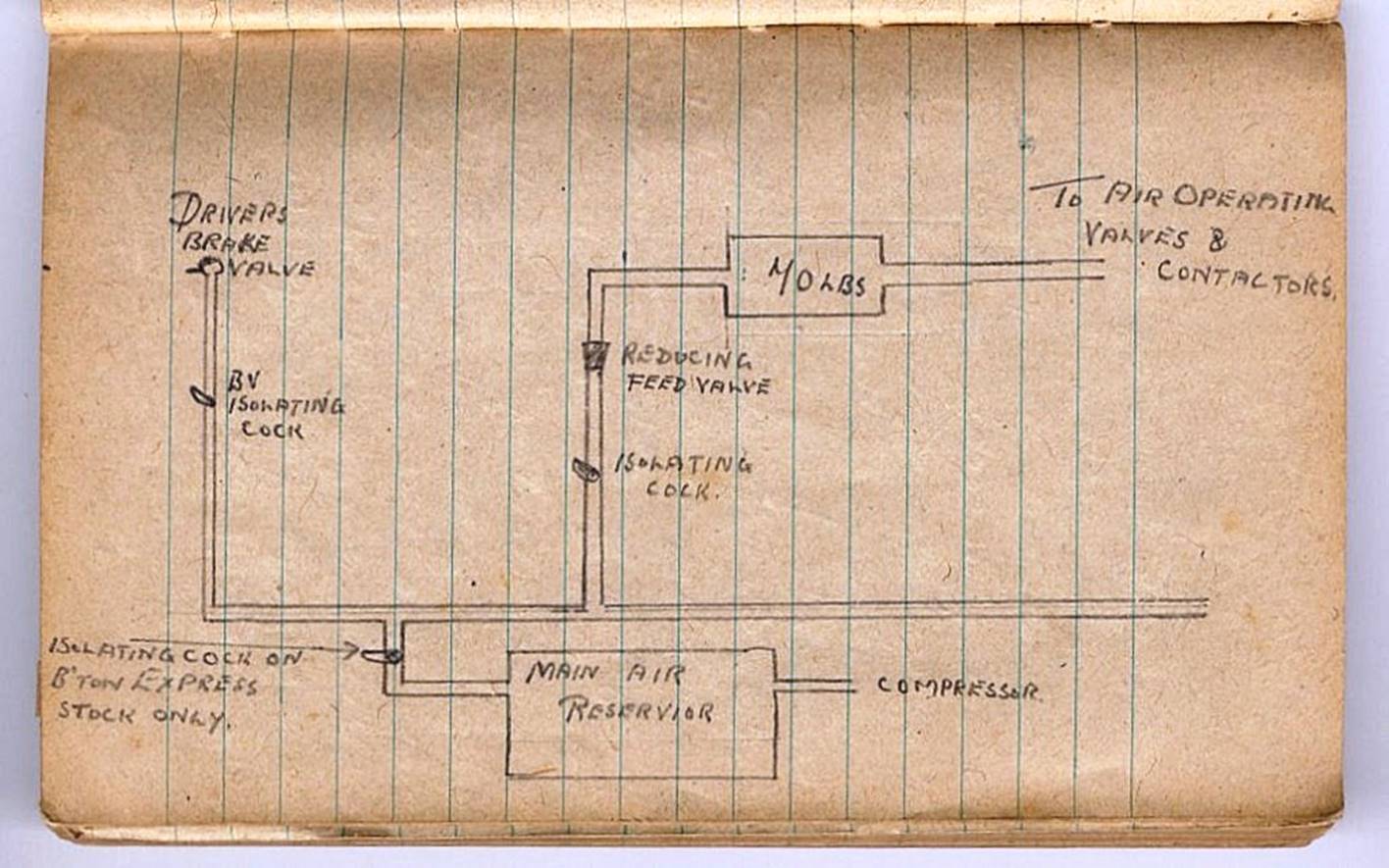

22. Main Reservoir Diagram





Text, letter

Description automatically generated

23. Main Reservoir Failures





Text, letter

Description automatically generated

24. Main Reservoir - Train Pipe Failures





Text, letter

Description automatically generated

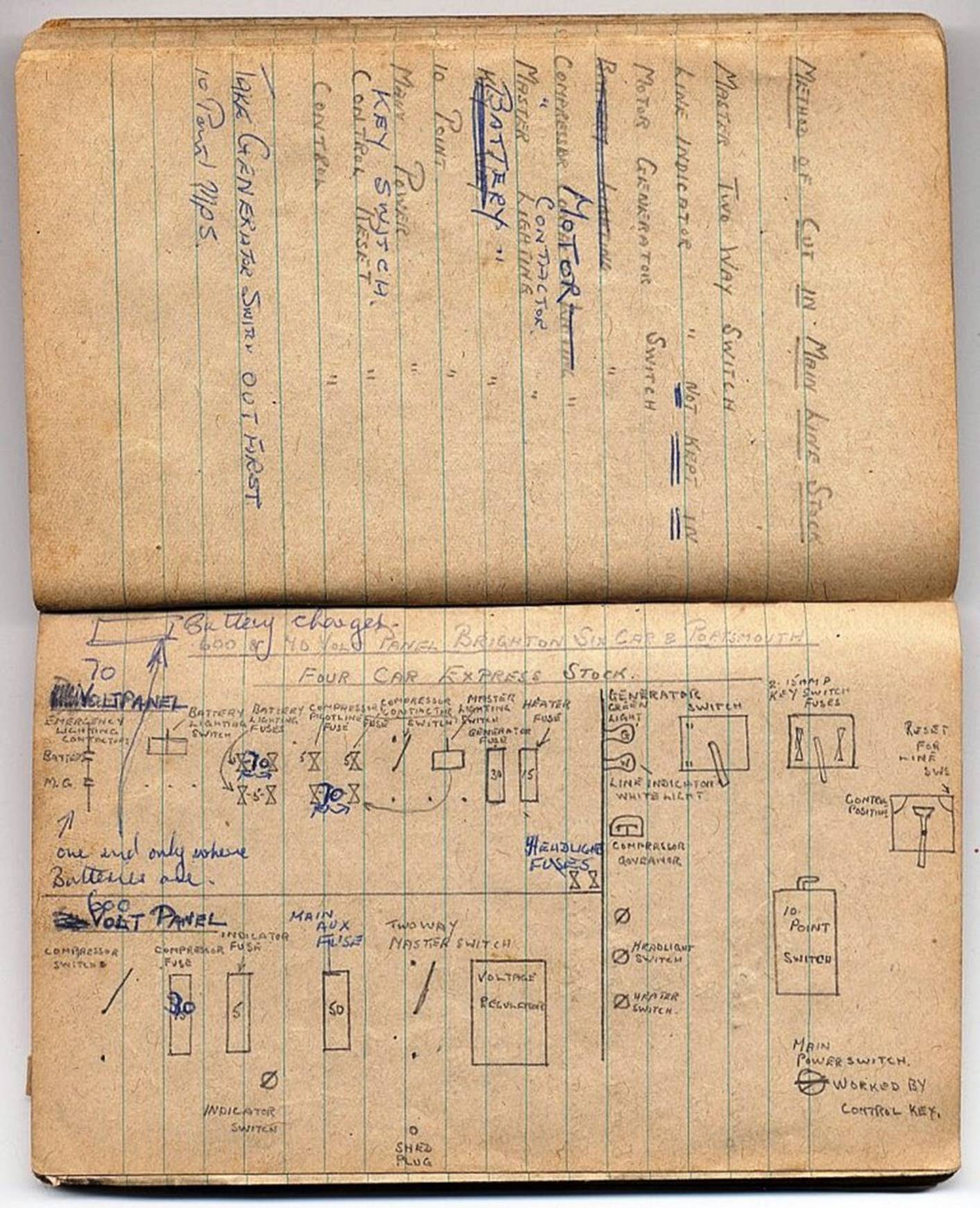

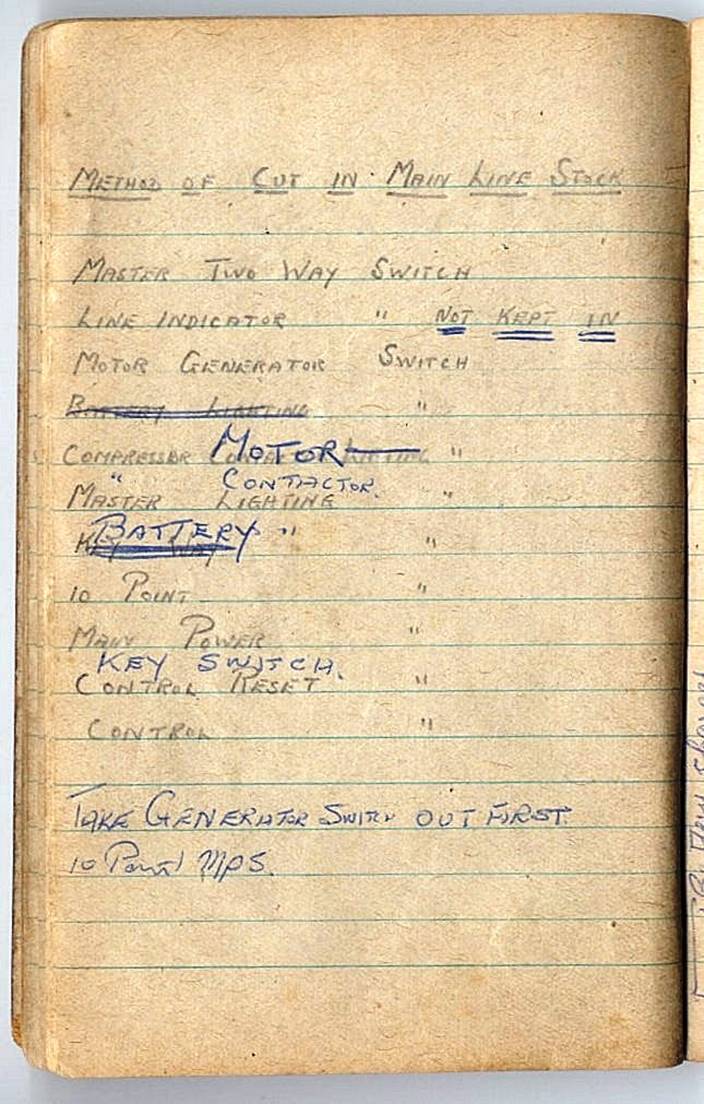

25. Cut In - Main Line Stock – text





Diagram, schematic

Description automatically generated

26. Cut In - Main Line Stock – diagram





Diagram, schematic

Description automatically generated

27. 600v And 70v Panel - Main Line Stock





Text, letter

Description automatically generated

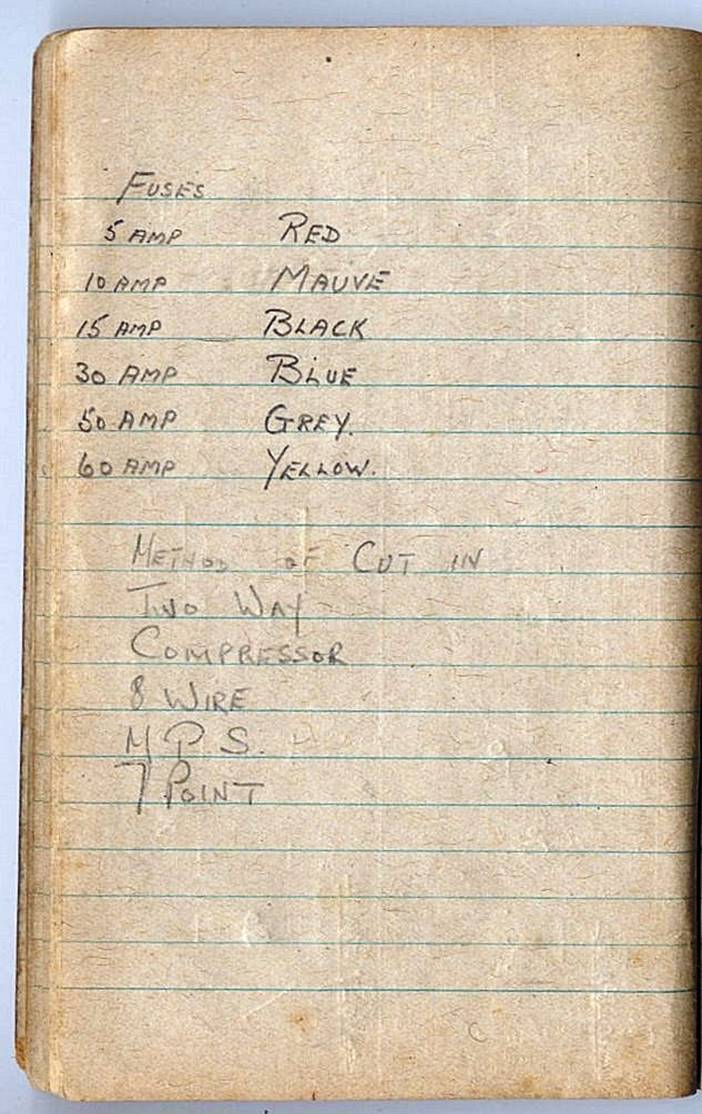

28. Fuses





Diagram, schematic

Description automatically generated

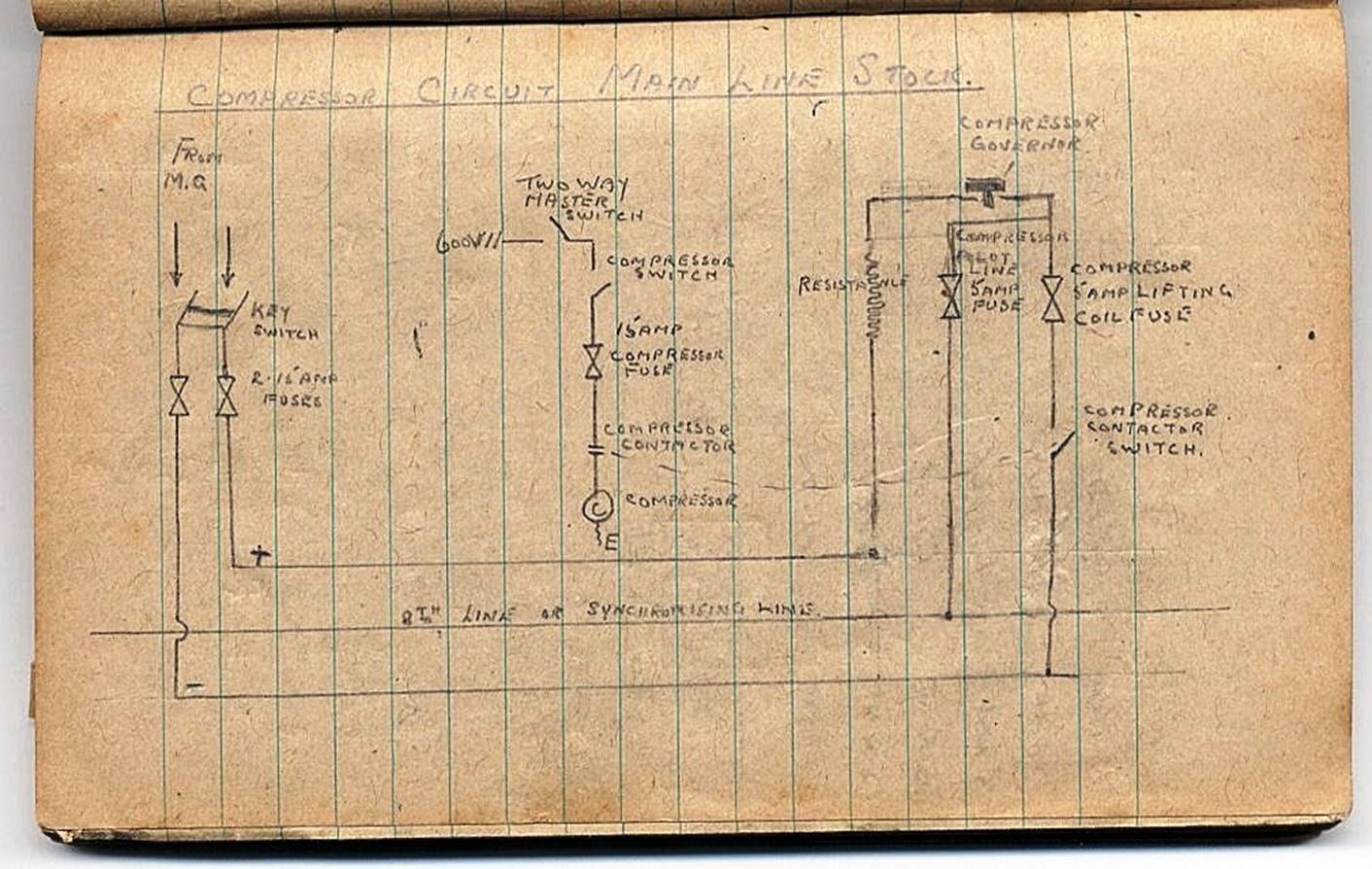

29. Compressor Circuit - Main Line Stock





Text, letter

Description automatically generated

30. Earth on Control





Text, letter

Description automatically generated

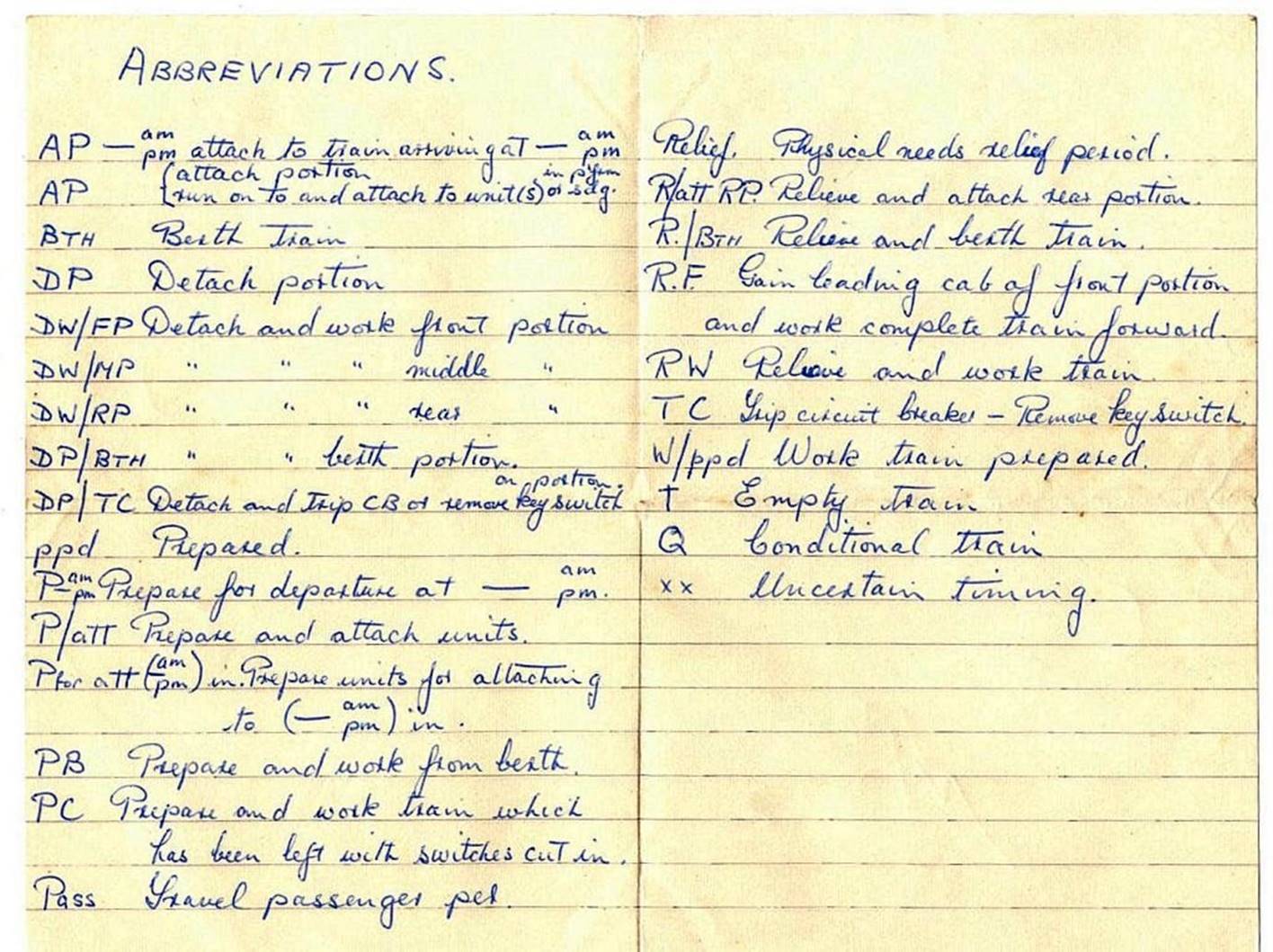

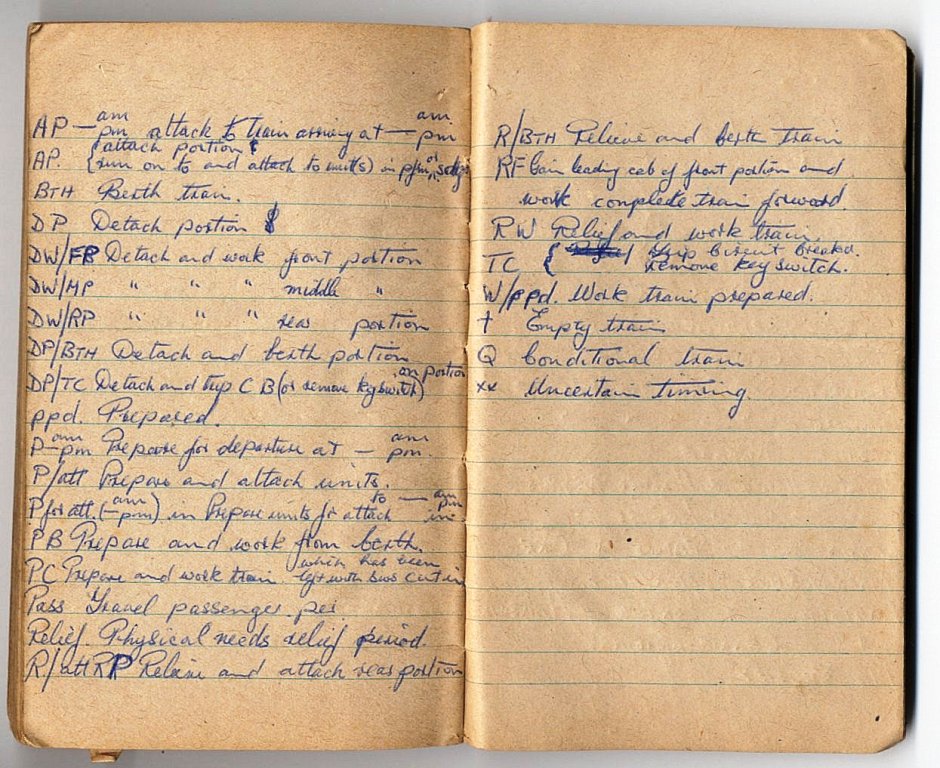

31. Working Abbreviation - 1





Text, letter

Description automatically generated

32. Working Abbreviations - 2





Text, letter

Description automatically generated

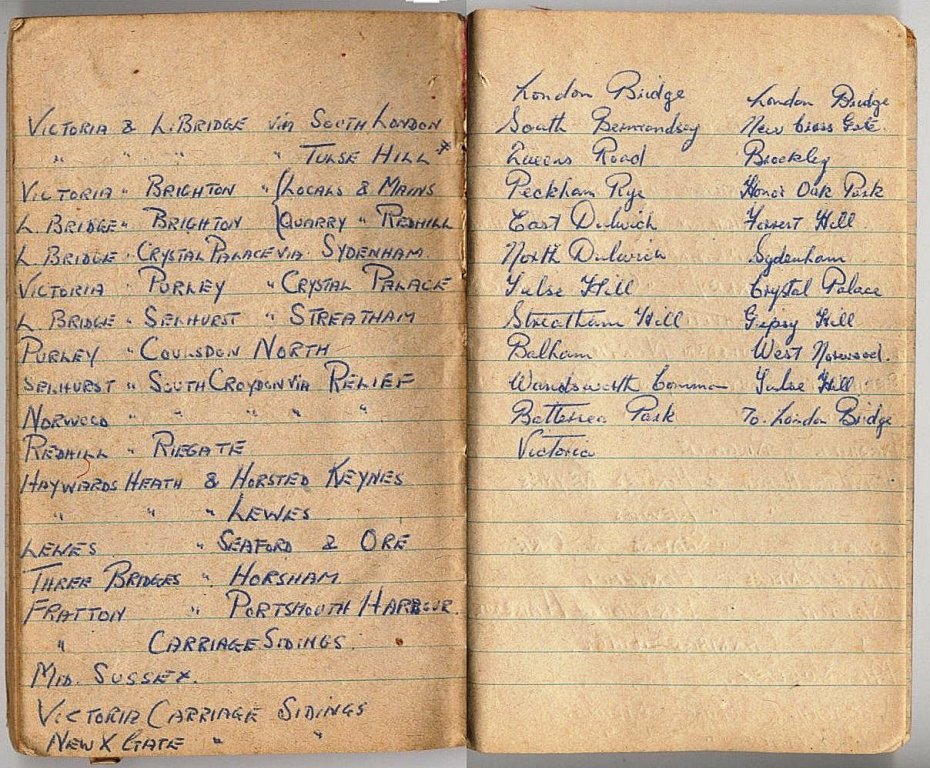

33. EMU Routes





Diagram, schematic

Description automatically generated

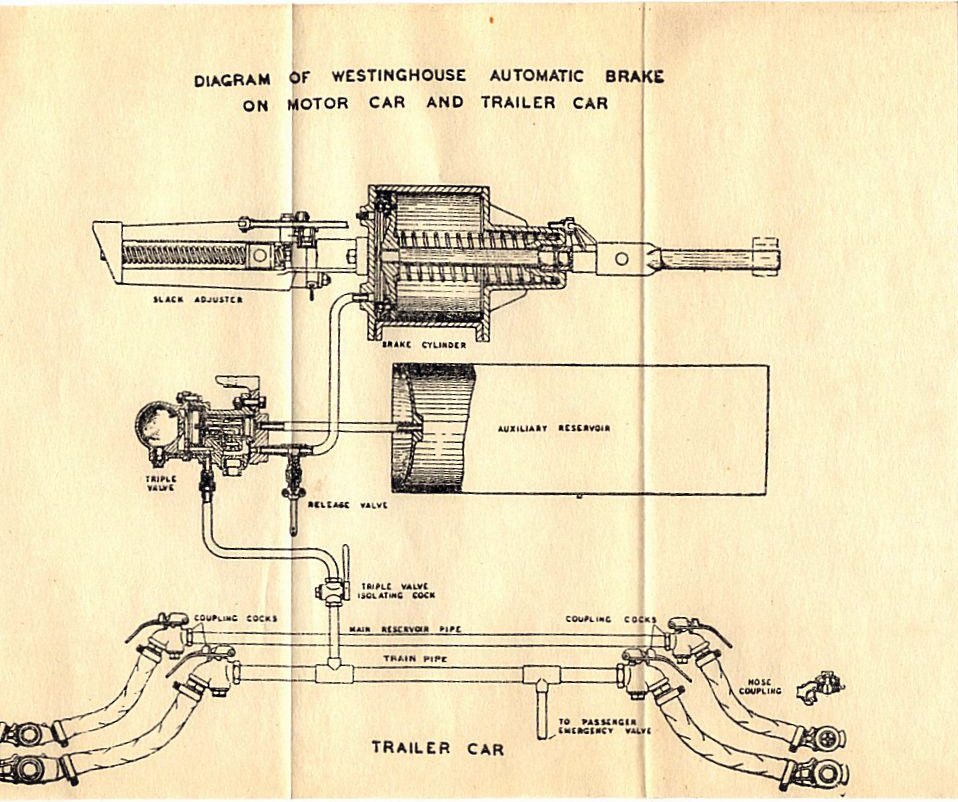

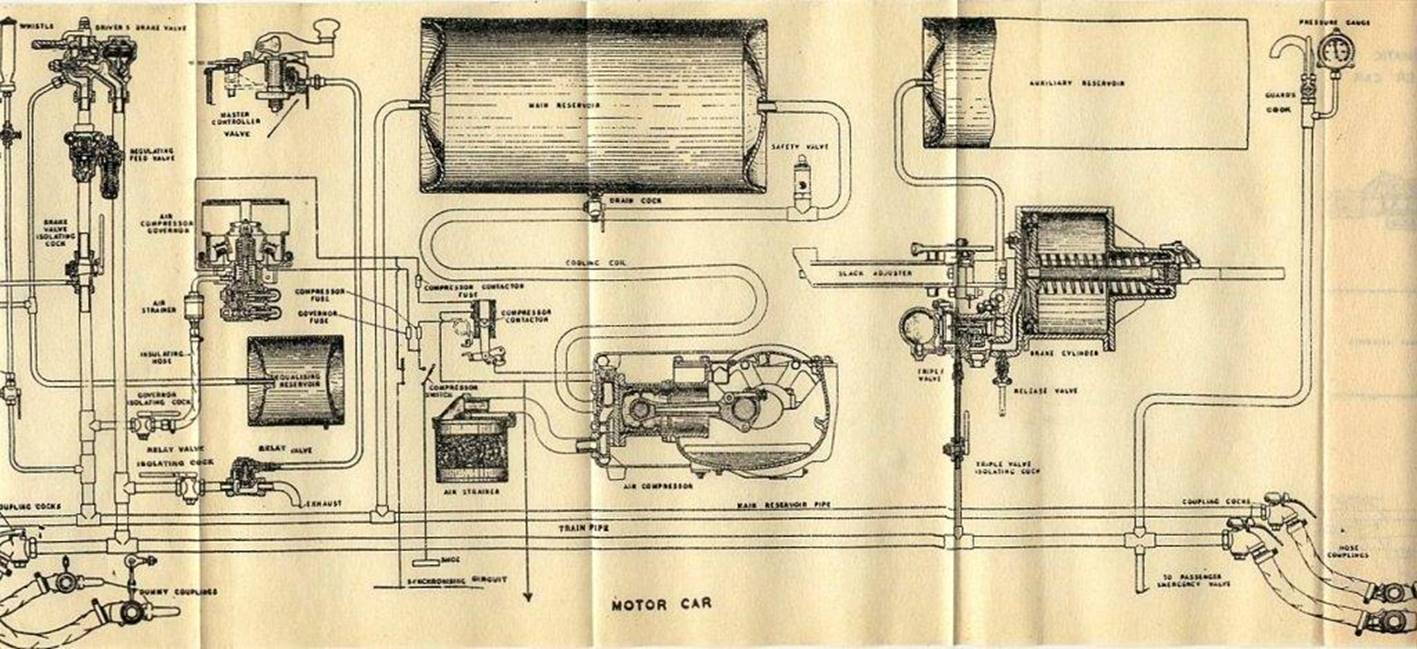

Westinghouse - Motor Car





Diagram, schematic

Description automatically generated

Westinghouse - Trailer Car
